For General Use Applications

With innovations you will not find anywhere else in the industry, you can find the Moore Class 10000 Standard Chord (SC) fan in use all over the world. The manually adjustable version of the Class 10000 SC is particularly ideal for installations with shallow rings and in retrofit situations because of its low-profile design. The heavy-duty fan offers a strengthened hub for engine driven applications, while optional vortex tips can reduce noise levels two to three decibels where sound is a factor. Blade diameters range from 3 to 24 feet for the widest use of industrial air flow applications. The SC fan is available in left-hand or right-hand rotation.

OPTIONAL EQUIPMENT

We custom manufacture all of our fans to suit your specific application. Our optional equipment and services help ensure our fans fit your exact requirements.

AirBrake®
Our anti-windmilling device easily installs on the shaft or bushing of your fan drive system to prevent reverse rotation. Maintenance-free and featuring a low-profile design, AirBrake® makes your fans safer to maintain while extending the life of your drive systems.

Anodized Blades
When specified, we can anodize aluminum blades on select models.

ATEX Certified Tips
In hazardous or potentially explosive atmospheres, our plastic ATEX certified tips ensure safe and spark-free operation.

Root Seals
Riveted onto the root of the blade, the seals prevent water and other debris from entering the body of the blade.

Extended Hubs
Extended hubs allow for greater clearance between the fan and drive system, which makes them ideal for installation directly on the motor or gearbox and in a wide range of aftermarket situations.

Automatic Hub Version
The Class 10000 SC Automatic Hub is a version of the Class 10000 SC fan with a pneumatically actuated hub that can adjust fan blade angles during fan operation. For precision cooling applications, the automatic hub fan to change cooling on demand.

This model works with a standard instrument air pressure of 3 to 15 psi and a constant 55 psi supply, but other ranges are available. If noise is a concern in your application, optional vortex tips can help reduce noise levels.

The Class 10000 SC Automatic Hub is available in diameters from 4 to 16 feet.

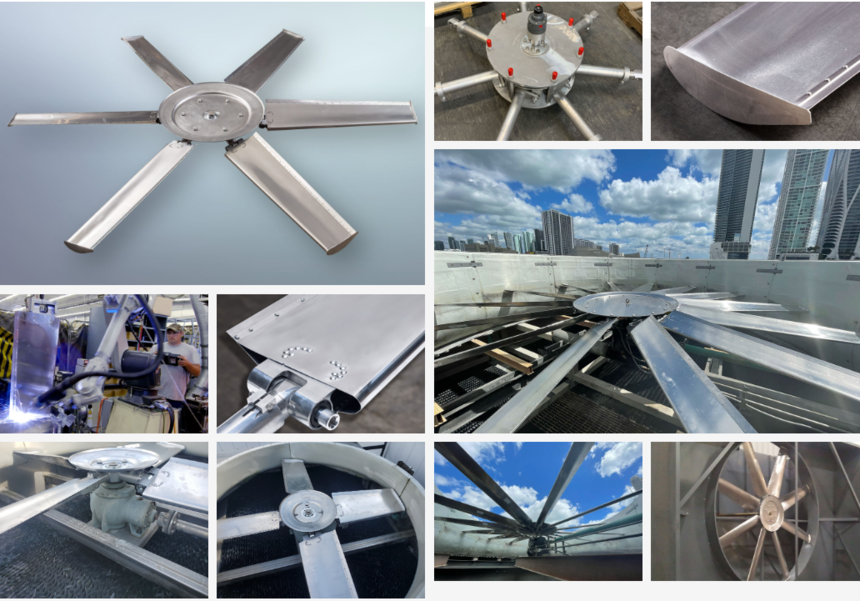

GALLERY
